Mixing Unit
Features

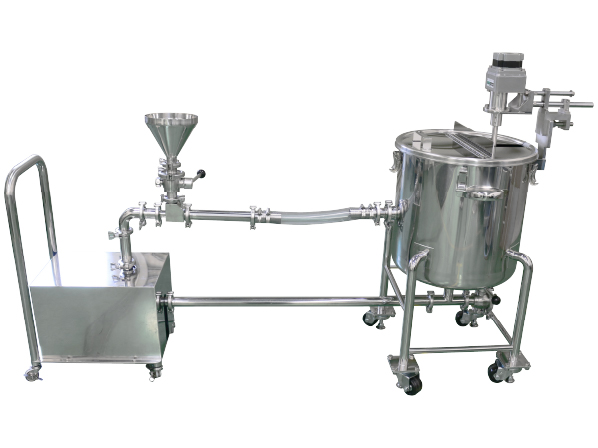

A stainless steel Mixing Unit specialized for uniform mixing of liquids and powders. Effective for powders that float on the liquid surface or form lumps.
Product Introduction Video
Product Specifications
Basic configuration
Tank / Agitator / Hopper / Pump / Valve
Material (container, piping, mixer): Stainless steel (SUS304)
Capacity: Up to 300L
*The pump and mixer model and detailed specifications will be determined through consultation with the customer.
Reference Dimensional Drawing
Drawings & Certificates
Request Drawings & Certificates / Contact UsDetails & Notes
The negative pressure generated by the circulation pump draws powder from the hopper into the pipe, where it is pre-mixed with liquid. This prevents powder agglomeration and floating on the liquid surface, dramatically shortening the time required to obtain a homogeneous dispersion.
Why It Doesn’t Form Lumps

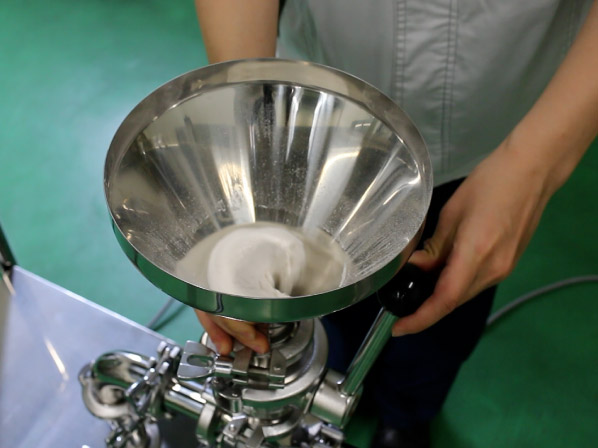

As powder is pulled from the hopper into the pipe, the airflow naturally breaks up any clumps before they can form. The powder mixes with the liquid in the pipe while moving toward the tank.
Why It Doesn’t Float on the Surface

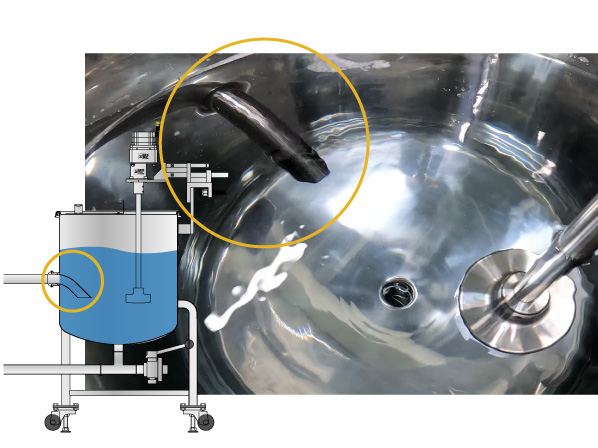

The powder/liquid pipe is installed **below** the liquid surface, so powder cannot sit on top and float—it is forced to stay submerged and disperse.
Comparison Test | Dissolving a Thickener
We compared the dissolution of the thickener CMC in water using a conventional setup (tank + agitator) and the Bernoulli-Flow Mixing Unit.
After approximately 10 minutes of agitation, the tank + agitator still contained large surface gels with dry powder trapped inside. With the mixing unit, only small gel-like specks were found at the bottom and no obvious powder lumps remained in the tank.
*CMC = Carboxymethyl cellulose, a powdered thickening agent.*
