Ferrule Open Pressure Container Angle Winding Leg
Features
Pharmaceutical manufacturer delivery
○ A stainless steel pressure vessel custom-made case used as a filter case that filters the impurities of drug solutions.
An intermediate container for the injection manufacturing process.

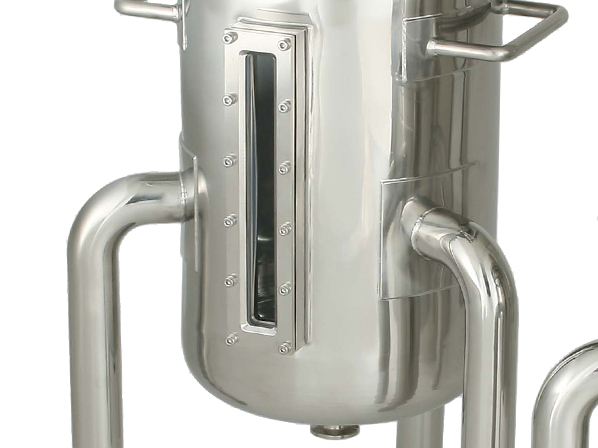

The vessel sides installed a window (site glass) on the container side so that the filter status can be confirmed.
In order to improve contamination prevention and corrosion resistance from the surface, the inner surface is electropolished.
The screw portion of the ferrule clamp band is subjected to surface treatment of protection and improving durability.
Product Specifications
5L Type Inner Diameter158 × Height 248mm
Maximum height: 447 mm
10 L Type Inner Diameter 208 × Height 346 mm
Maximum height: 515 mm
All capacity about 5L, 10L
Withstand voltage 0.18 MPa
Material SUS316L
Finishing outer surface # 400 buff grinding inner surface electrolytic polishing
Drain 15A Ferrule

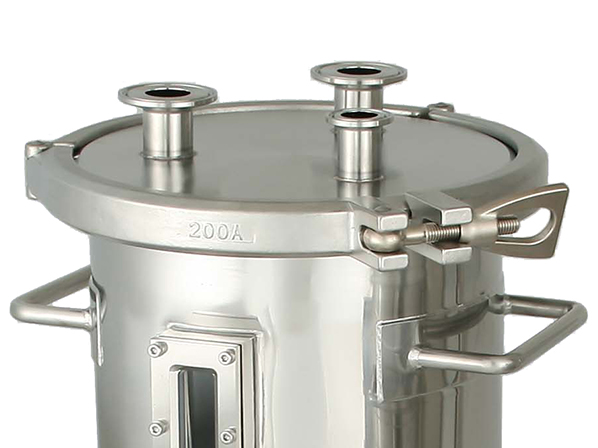

Lid ferrule cap
5L Type: 150A 10L Type: 200A
Parts corner flange appearance window (reinforcement pylex)
Document mill sheet, electrolytic polishing certificate
Management number 1K005958
