Jacketed Stainless Containers [KU-Series]

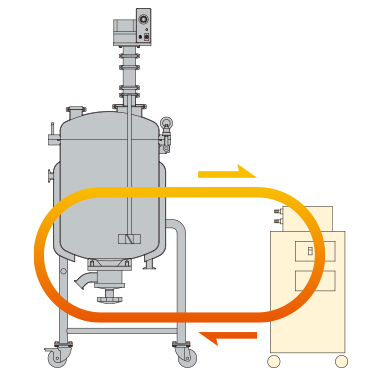

KU-Series tanks add a double-wall “jacket” around the main vessel.
Hot or cold fluid circulates in the jacket to heat or cool the product inside without direct contact.
KU-KTT-J Series – Bottom Slope, Side Outlet
KU-DT**-J Series – Bottom Discharge
KHU Series – Built-in Heater
KU-KTT-J Series — 3 ° Bottom Slope, Side Outlet
Jacketed Sloped Tank with Legs [KU-KTT-J-L]
3 ° bottom incline, side ferrule outlet, caster legs.
KU-DT**-J Series — Center Bottom Outlet (Three Valve Choices)
Jacketed cylindrical tanks with vertical discharge port.
Choose the valve that matches your process and cleanability requirements.
|
Ferrule Ball Valve (KU-DTK-J) |
Clamp-connected sanitary ball valve; suited to general liquid discharge and quick hose change-over. |
|---|---|
|
Tank-Bottom Ball Valve (KU-DTHB-J) |
Flush-mount tank-bottom ball valve that minimises hold-up and allows full-bore flow for viscous or particulate fluids. |
|
Tank-Bottom Diaphragm Valve (KU-DTM-J) |
Zero-dead-leg diaphragm valve; best choice when CIP/SIP or high-purity service is required. |
Central Ball-Valve Model [KU-DTK-J]
Dome bottom with ferrule-connected sanitary ball valve.
Flush Ball-Valve Model [KU-DTHB-J]
Tank-bottom ball valve mounted flush to minimise hold-up.
Diaphragm-Valve Model [KU-DTM-J]
Zero-dead-leg diaphragm valve for CIP/SIP and sterile service.
KHU Series — Jacket + Integrated Electric Heater
An immersion-type flange heater is built into the jacket,
allowing the unit to heat without an external hot-water source.
Temperature control panel and safety interlocks are available on request.
- Set-point adjustable via digital controller
- Safety thermostat and dry-run protection (optional)
- Same agitator interface as KU series
Heater-Integrated Jacket Tank [KHU-J-L]
All-in-one jacket tank with electric heater and caster legs.
