Stainless Steel Pressurized Vessel – PCN Series

Pressurizable Stainless Steel Tanks [PCN Series]

Stainless steel tanks that can be pressurized for transferring liquids.
Various opening styles and optional accessories let you use them for vacuum degassing,
nitrogen purging, intermediate storage, and more.

Features & Usage Examples

Choose from three lid openings (4S Ferrule, Flange, Large Ferrule)
Various optional parts (pressure gauge, safety valve, mixers, etc.)
Caster legs available for easy movement & bottom discharge
Made-to-order: change dimensions/materials, add custom features

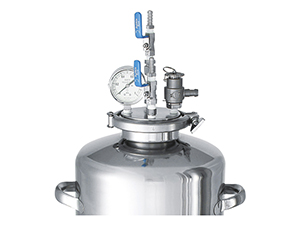

PCN-L_p_01

Three Types of Openings

Choose from 4S Ferrule (lightweight, cost-friendly), Flange (swing-bolt), or Large Ferrule (200A–400A)
depending on your application.

4S Ferrule opening

4S Ferrule Opening

Simple, lightweight lid, cost-effective ferrule connection.

Flange Opening

Flange Opening

Swing-bolt for secure sealing, easy disassembly & cleaning.

Large Ferrule opening

Large Ferrule (200A–400A)

Wider opening for larger volumes, easier handling.

PCN Product Lineup

The lineup is grouped as follows:

  • 1) Standard (PCN, PCN-O, PCN-F)
  • 2) Caster Leg (PCN-L, PCN-O-L, PCN-F-L)
  • 3) Jacketed (PCN-J, PCN-O-J, PCN-F-J)
  • 4) Caster Leg + Jacket (PCN-J-L, PCN-O-J-L, PCN-F-J-L)
  • 5) ASC Series (PCN-ASC, PCN-O-ASC, PCN-F-ASC)

1) Standard (Fixed Type)

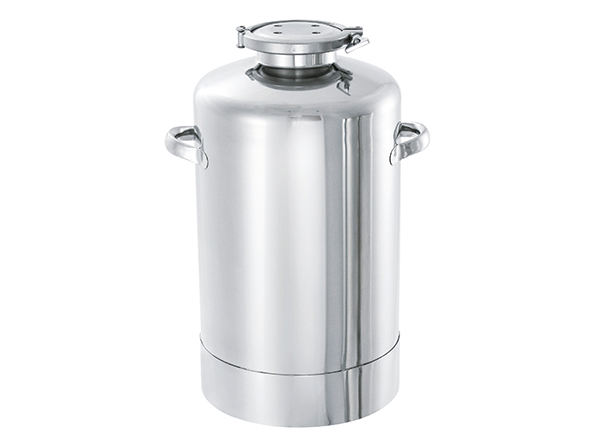

PCN_02-1

Pressure Vessel [PCN]

Ferrule type (4S). Lightweight cover, cost-friendly.

View Details >>

PCN-O_01

Pressurized Container [PCN-O]

Flange (straight). Same diameter as interior, easy to wash.

View Details >>

PCN-F_01

Pressurized Container [PCN-F]

Wide-mouthed ferrule. Handle fully welded for sanitary use.

View Details >>

2) Caster Leg (No Jacket)

PCN-L_01

PCN-L

Ferrule type with caster legs. Easily moved, bottom discharge.

View Details >>

PCN-O-L_01

PCN-O-L

Flange type + caster. Quick open/close, easy to wash, fully mobile.

View Details >>

PCN-F-L_01

PCN-F-L

Wide-mouth ferrule + caster legs. Easy bottom discharge, large opening.

View Details >>

3) Jacketed (Fixed Base)

PCN-J_01

PCN-J

Ferrule opening + jacket for heating/cooling. Fixed base.

View Details >>

PCN-O-J_01

PCN-O-J

Flange opening + jacket, swing-bolt, easy cleaning. Fixed base.

View Details >>

PCN-F-J_01

PCN-F-J

Wide ferrule opening + jacket. Ideal for large-volume temperature control.

View Details >>

4) Caster Leg + Jacket

PCN-J-L_01

PCN-J-L

Jacket + caster legs. Steam/water for temperature control + mobility.

View Details >>

PCN-O-J-L_01

PCN-O-J-L

Flange opening, jacket & caster, easy open & wash.

View Details >>

PCN-F-J-L_01

PCN-F-J-L

Wide-mouth ferrule + jacket + caster. Large volume & mobility.

View Details >>

5) ASC Series

A removable container & base design for thorough cleaning or partial usage.

PCN-ASC

PCN-ASC

Ferrule straight type, container can be detached from base.

View Details >>

PCN-O-ASC_01

PCN-O-ASC

Flange type with removable base, easy thorough washing.

View Details >>

PCN-F-ASC_01

PCN-F-ASC

Wide-mouth ferrule + separate base, ensuring high washability.

View Details >>

Accessories (Optional Parts)

We offer multiple accessories to match your pressurized usage. Examples include:

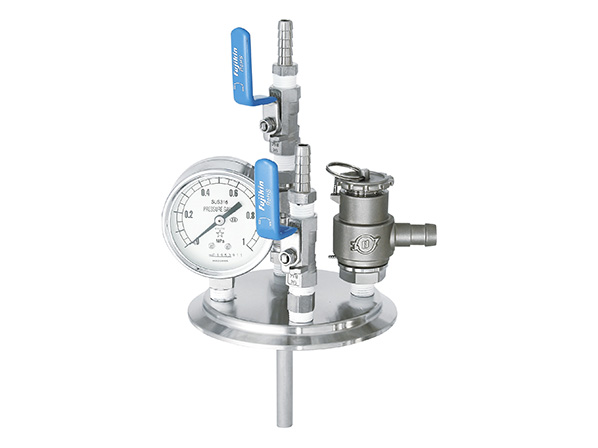

LP_01

Liquid Delivery Unit [LP-1]

For convenient liquid transfer in pressurized settings.

View Details >>

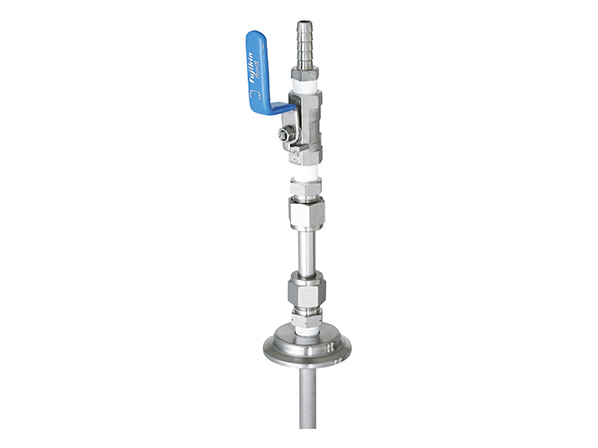

L_01

Liquid Outlet [L-1]

Allows controlled discharge from inside the vessel.

View Details >>

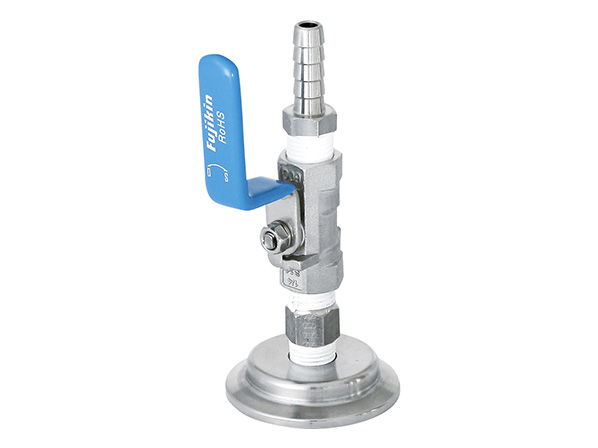

P_01

Pressure Port [P-1]

Attach a pressure line or inert gas feed for purging.

View Details >>

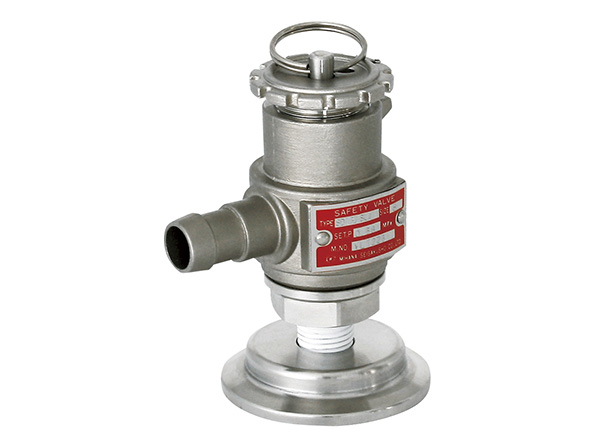

S_01

Safety Valve [S-1]

Ensures over-pressure protection for your tank.

View Details >>

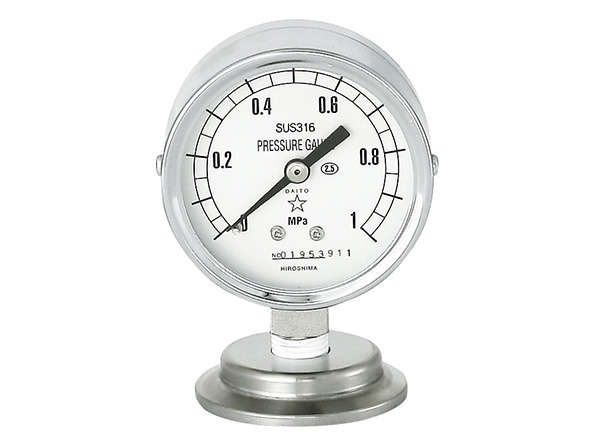

PV-P_01

Pressure Gauge [PV-P]

Monitors internal tank pressure at a glance.

View Details >>

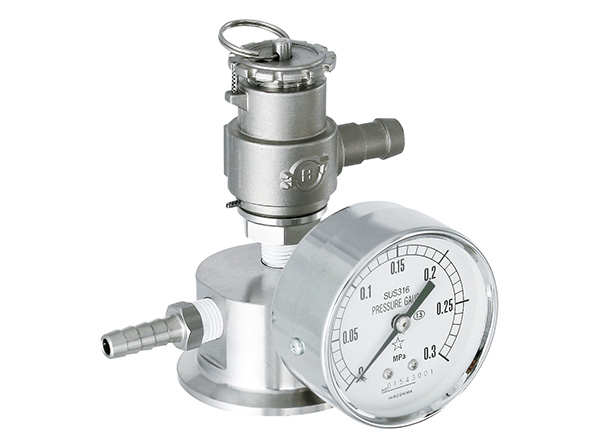

PPS-P_01

Pressure Gauge & Safety Valve Assembly [PPS-P]

Combines gauge + safety valve for easy installation.

View Details >>

Custom-made Examples

Below are examples of customized PCN-type pressure vessels with special attachments or functions:

1O008765_01

Pressure control, agitation, temperature control unit

(Flange Straight Type)

View Details >>

1N004015_01

Cart with magnetically stirred steam sterilizable container

(Flange Straight Type)

View Details >>

1N001496_01

Support base, diaphragm valve, shower ball, external insulation

(Flange Straight Type)

View Details >>

1K010676_01

Butterfly hinge with spring

(Flange Straight Type)

View Details >>

1E009035_01

Pure steam sterilization, bottom stirring mixer attached

(Flange Straight Type)

View Details >>

1P000620_01

Cleanroom lifter, bottom valve, stirring mixer, cooling coil

(Flange Straight Type)

View Details >>

Ferrule Wide-Mouth Type

1K005958_01-1

Corner flange window [KNM], inner surface electropolished

(Ferrule Wide-Mouth)

View Details >>

1J004005_01

Jacket + stirrer attached

(Ferrule Wide-Mouth)

View Details >>

1P003655_01

Ball valve, leak valve, integrated meter

(Ferrule Wide-Mouth)

View Details >>

Ferrule Type

1J002575_01

Liquid level gauge + float

(Ferrule Type)

View Details >>

1N008856_01

100ml pressurized bottle, electropolished

(Ferrule Type)

View Details >>

Contact / Request Quote

For more information or to discuss custom orders, please contact us:
