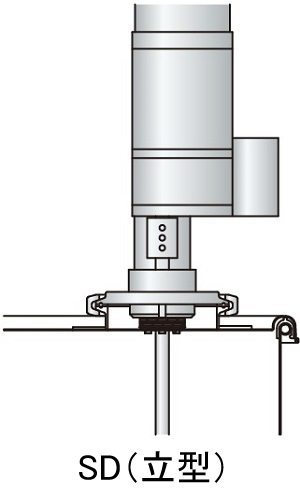

Features of Vertical Agitator SD
・A type that attaches the agitator to the lid of the container
・Some can stir under sealed or pressurized conditions
・Convenient detachable Herule connection
・Choose from “Electric Motor Agitator”, “Air Motor Agitator”, and “Magnetic Agitator” according to your
needs
Vertical Electric Motor Agitator
Bernoulli Flow Agitator
【NTME-A-SD】Aluminium Electric Motor Vertical Agitator (Bernoulli Flow Agitation
Body BEAGR E type)
Adopts an agitator body that excels in stirring without incorporating air.
It is a Herule connection that is easy to attach and detach.
【NTME-A】Aluminium Electric Motor Agitator (Bernoulli Flow Agitation Body BEAGR E
type)
Adopts an agitator body that excels in stirring without incorporating air.
It is a Herule connection that is easy to attach and detach.
It can stir in a sealed state, and can be used under pressure and reduced pressure conditions.

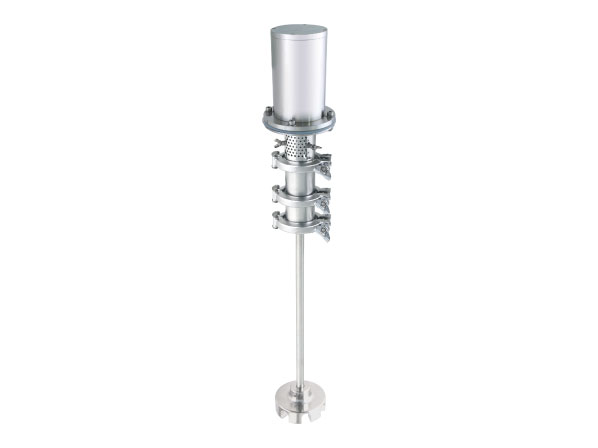

【NTME-S】Stainless Steel Electric Motor Agitator (Bernoulli Flow Agitation Body BEAGR E
type)
Adopts an agitator body that excels in stirring without incorporating air.
This is a Herule connection type that can stir in a sealed state. It is also capable of pressure
and depressurization.
Adopts a stainless motor that is resistant to rust and hygienic.The motor has a waterproof
performance equivalent to IP55, and can be used in environments where water may splash, such as when
cleaning containers.
Other Agitators We Handle

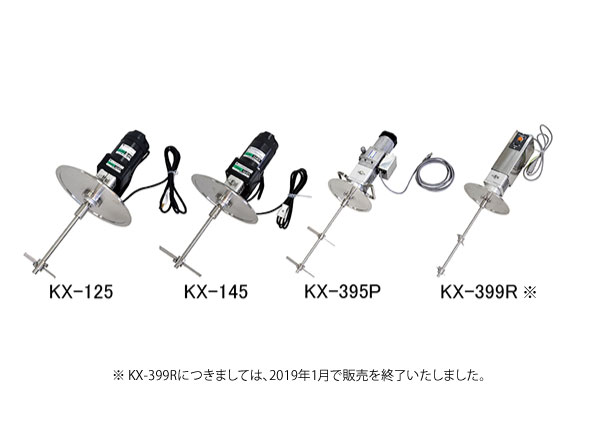

KX Type Electric Motor Agitator
We offer four types of agitators depending on the difference in motor capacity and torque.
※As for KX-399R, sales ended in January 2019.
Vertical Air Motor Agitator
Bernoulli Flow Agitator
【NTMA-A-SD】Aluminium Air Motor Vertical Agitator (Bernoulli Flow Agitation Body
BEAGR E type)
Adopts an agitator body that excels in stirring without incorporating air.
This is a vertical type that connects to the lid of the container with a Herule
connection.
Can be used in explosion-proof areas.Can be used without oil, so there is no concern about
oil scattering.

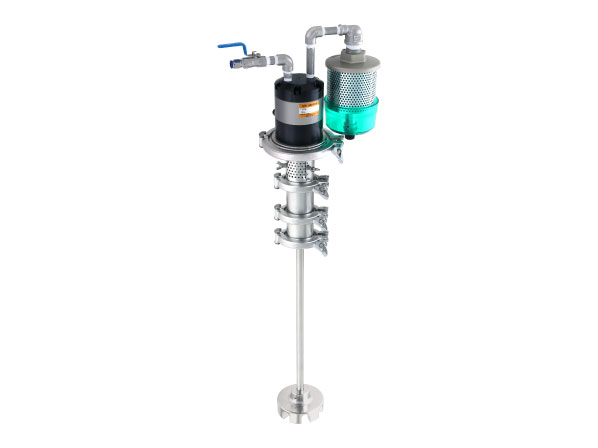

【NTMA-A】Aluminium Air Motor Agitator (Bernoulli Flow Agitation Body BEAGR E type)
Adopts an agitator body that excels in stirring without incorporating air.
This is a Herule connection type that can stir in a sealed state. Pressure and depressurization are also
possible.
Can be used in explosion-proof areas.It can be used oil-free (oil-less), so there is no
scattering of oil.

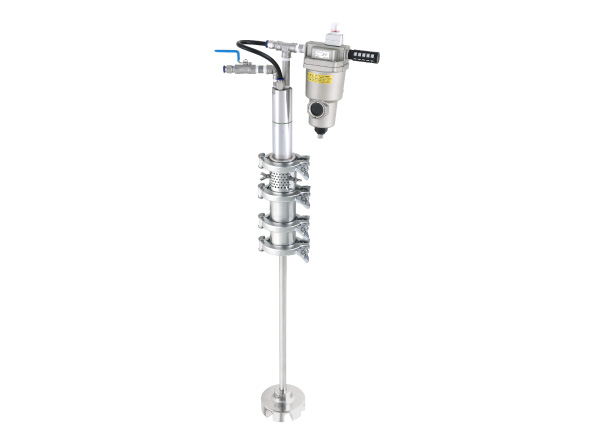

【NTMA-S】Stainless Steel Air Motor Agitator (Bernoulli Flow Agitation Body BEAGR E
type)
Adopts an agitator body that excels in stirring without incorporating air.
It can stir in a sealed state with a Herule connection. Pressure and depressurization are also
possible.
The motor is made of stainless steel, which is resistant to rust and hygienic. It can
be used in explosion-proof areas.
Can be used without oil, so there is no concern about oil scattering.
Other Agitators We Handle
It has a safe explosion-proof structure due to the operation of the air motor.
The rotation speed and torque are controlled by adjusting the air pressure and opening and closing the valve.
Vertical Magnetic Agitator
Being a magnetic agitator, it carries the driving section at the top of the tank, allowing for agitation in a
completely sealed (seal) state of the tank.
It is ideal for agitation where sanitary conditions and cleanliness are required, such as in pharmaceuticals,
cosmetics, bio, semiconductors, food-related, etc.

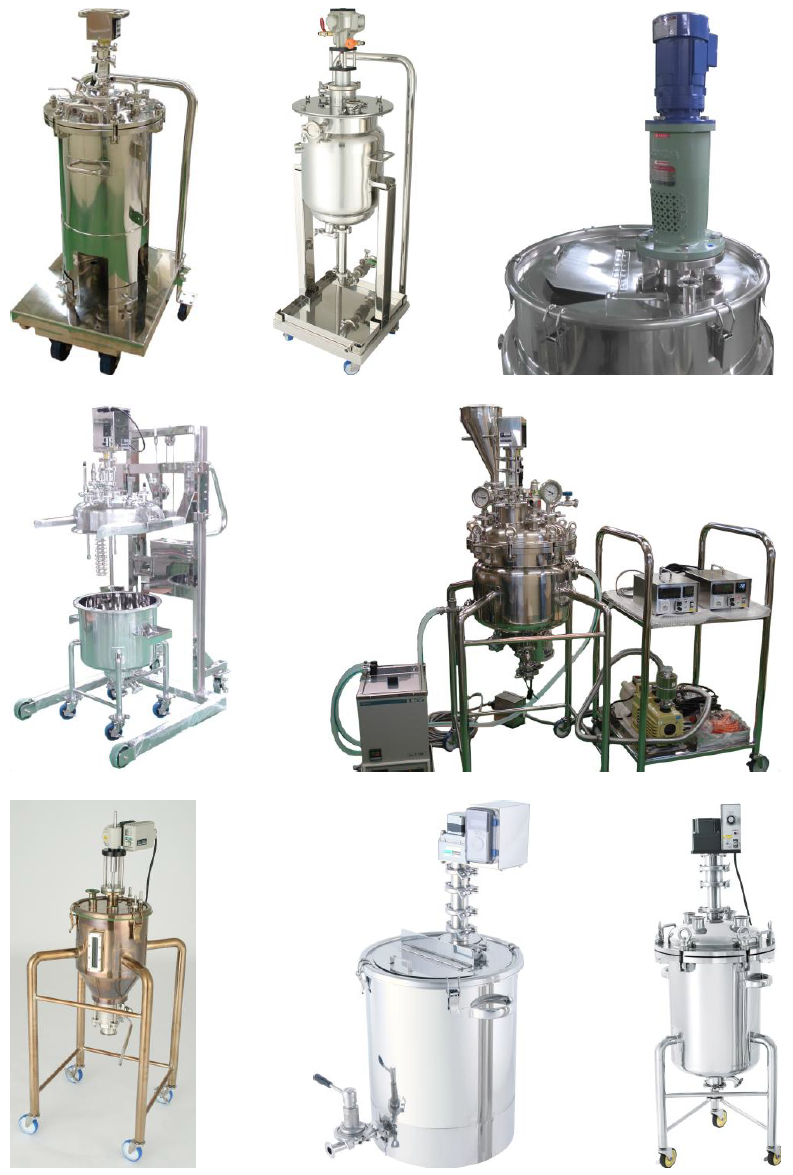

Examples of Attachment to Stainless Steel Tanks
Please feel free to contact us
We will design and manufacture agitation tanks combining agitators and stainless steel tanks.
We can custom-make them to suit the contents of the liquid and the usage environment, so please feel free to
consult us.
