Tapered Tanks Overview [TP Series]
A lightweight stainless steel tank that can be nested (stacked) for compact storage!
Compared to straight-wall tanks of the same size, these tapered tanks reduce the overall weight
and workload. We offer various lid types (covered, clip seal, band seal, etc.) to suit your application.

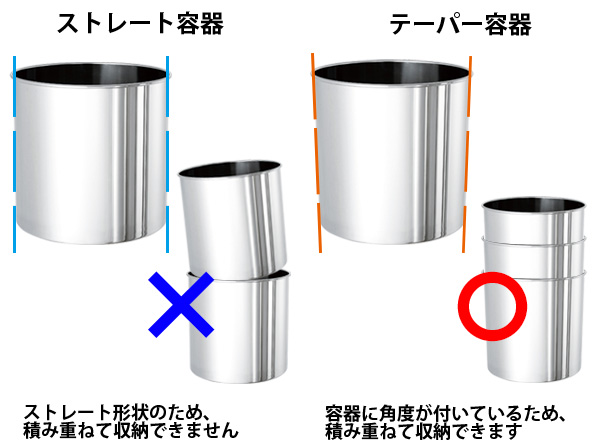

Differences from Straight Tanks
Unlike standard straight-walled stainless steel tanks, the TP Series are taper-shaped,
allowing them to be nested (stacked) for more compact storage. The bottom corners have a
smooth R-structure for easier cleaning, and you can choose from various lid or sealing methods.
How Much Lighter?
Tapered tanks are on average about 12% lighter than regular (straight) tanks, and
depending on the size they can be as much as 26% lighter. This helps reduce the workload significantly.
For a 25L Tank
Straight tank (ST-33) → 3.7kg
Tapered tank (TP-ST-33) → 3.3kg
Approximately 12% lighter

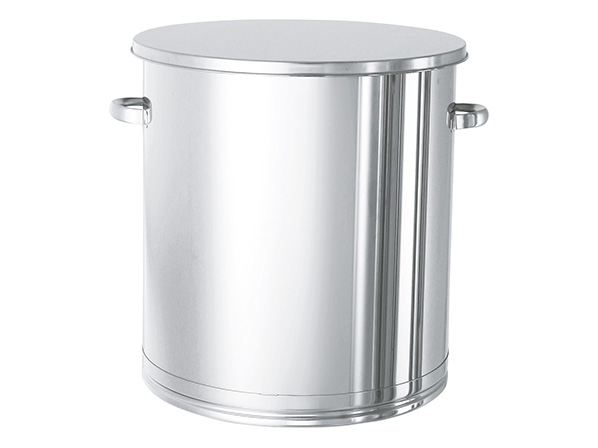

For a 200L Tank
Straight tank (ST-565H) → 21.8kg
Tapered tank (TP-ST-565H) → 17.3kg
Approximately 26% lighter
TP Series Lineup
Below is our main TP series lineup, classified by usage or lid type.
We have both double-handle and suspended-handle variations, as well as options for stacking.
Standard (Double-Handle Type)
Clip Seal Type [TP-CTH]
Clips on the main body make sealing easy with no extra parts needed.
Band Seal Type [TP-CTL]
Secure sealing with a band. Fewer sealing parts mean easier cleaning.
For One-Handed Carrying (Suspended Handle)
Suspended Handle (Covered Lid) [TP-STB]
Easy to hold like a bucket. No airtight seal needed.
Suspended Handle (Clip Seal) [TP-CTB]
Clips are attached to the tank body, enabling quick partial sealing.
Suspended Handle (Band Seal) [TP-CTLB]
Sealed with a band; handle allows easy carrying.
For Stacking Tanks on Top of Each Other
Some models allow both nesting (when empty) and stacking (when lidded).
Currently available in clip sealing type only.
Suspended Handle – Stackable [TP-CTB-STA]
Clip-sealed, single-handle version that allows stacking.

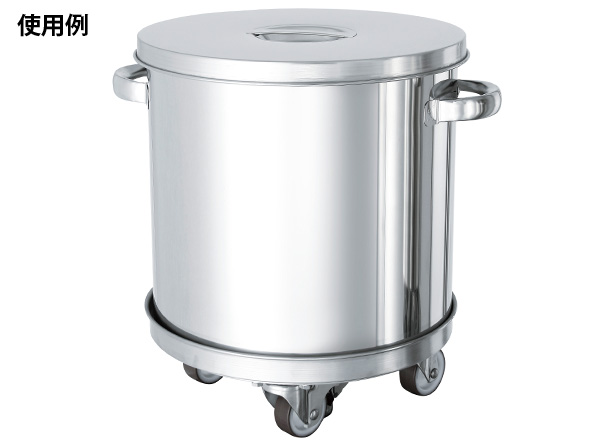

Dedicated Transport Carts
We also manufacture dedicated carts for TP series tanks. If you need a cart not in our lineup,
we can custom-make it for you. Feel free to contact us.
KM-TP / KMS-TP
Dedicated cart for tapered tanks
KM-TP (SS rubber wheel), KMS-TP (SUS urethane wheel)
KM-STA / KMS-STA
For TP-STA series.
KM-STA (SS rubber wheel), KMS-STA (SUS urethane wheel)
Custom-Made Examples
Tapered Tank with Sealing Seat
Delivered to a food manufacturer.
A custom tapered airtight tank used for transporting liquid-filled bags.
Graduated Suspended Handle Tapered Tank
Delivered to a machinery manufacturer.
A custom stainless steel tank with graduated markings.
